Divisible Flexible Conduit

Material: PA6 Polyamide
Color: black, gray
Working temperature: -50° C ~135 ° C short time 150 ° C
Product features :
1 Standard type: FR grade UL94-HB; Flame retardant type: FR grade UL94-V0
2,Certification: ROHS , CE , track DIN5510 Flame retardant smoke certification, ASTMD4329 UV resistance test, -50° C low temperature test, low smoke & halogen free
3 Easy disassembly during maintenance , convenient installation & well protection for cable wire
4, UV resistance, anti-aging, fire resistance, good flexibility, anti-distortion, strong mechanical strength, particular heavy load， alkali / weak acid resistance, lubricating oil, coolant, etc., shiny surface, friction resistance.
Application: For power/metallurgy/cement plant overhaul of the power equipment cable wire , military aviation equipment ,machinery manufacturing industry etc.
Opening Male Thread Connector

Material: PA66
Color: Black, other colour customizable
Working temperature: -40° C ~110 ° C short time 130 ° C
Product features :
1.Flame retardant grade: UL94-HB
2.Certification: ROHS, ASTMD4329 UV resistance test, -40° C low temperature test;
3.Connect with split Double-layer conduit & motor interface or equipment cabinet ,Easy disassembly & convenient installation during maintenance , well protection for cable wire;
4.UV resistance, anti-aging, fire resistance, strong mechanical strength, withstand relatively heavy load,alkali / weak acid resistance, lubricating oil, coolant, etc.
Application: For power/metallurgy/cement plant overhaul of the power equipment cable wire , military aviation equipment ,machinery manufacturing industry etc..
Corrugated PVC Coated Metal Conduit

Material: inner with hot-dipped galvanized steel or stainless steel (copper,aluminum customizable) ;outer PVC.
Color: black, gray,other colors can be customized.
Product performance :
1. high waterproof & dustproof ;
2. Strong tensile & compression resistance;
3. strong anti-aging , corrosion , weather resistance;
4. Good cable protection capability;
5. UL94V0 grade flame retardant;
Comply with CE,ROHS 2.0 Environmental protection ,flame retardant grade certification, etc.
Working temperature :-30℃~80℃(more high or low temperature type material customizable)
Application: railway, power, aerospace , telecommunication system, mechanical equipment installation, lighting system,Electrical insulation protection system, etc.
Liquid tight flexible conduit（interlock）

Material: inner with hot-dipped galvanized steel or stainless steel
(other materials customizable) ;outer PVC.
Color: black, gray,other colors can be customized.
Product performance :
1. high waterproof & dustproof ;
2. Strong tensile & compression resistance,superior than GB type;
3. Strong anti-aging , corrosion , weather resistance;
4. Good cable protection capability;
5. Flame retardant grade UL94V0 ;
Comply with CE,ROHS 2.0 Environmental protection ,flame retardant grade certification, etc.
Working temperature :-30℃~80℃(more high or low temperature type material customizable)
Application: Railway, power, aerospace , telecommunication system, mechanical equipment installation, lighting system,Electrical insulation protection system, etc.

PRODUCTS TAGS

Stainless

Liquid Tight Connector-Straight

Material: thickened zinc alloy chrome plating
Structure: lock nut,washer,main body,ferrule,clamp ring, sealing nut
Product performance :
1. high waterproof and dustproof ;
2. Compact structure,well connection ;
3. Good cable protection capability;
4. Optional grounding ;
5. Good corrosion resistance.
Application: connecting with flexible conduit, mainly used for installation & maintenance of power equipment, railway ,marine vessel, petrochemical industry, metallurgy,Elevator, lighting, telecommunication, textile & dyeing and other mechanical equipment wire and electrical system protection
[Non-standard thread customizable ,solution for a variety of thread or hole size]

Main Parameter :

Item NO. :
FRB.LTC
Brand:
FRABO
MOQ :
1 PCS
Origins :
China
Port :
Shanghai/Ningbo
Lead Time :
1-3 working days after receipt of payment

Get Price

Products Details

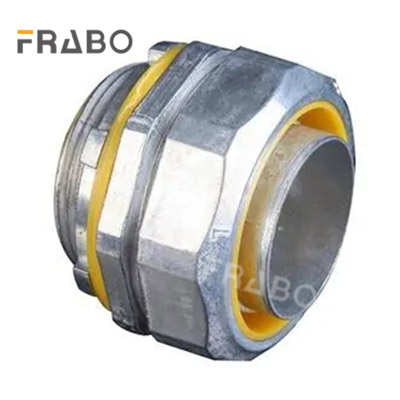

Liquid Tight Connector-Straight

Order NO.	Conduit Size	Thread	Length	OD	Thread Length	ID
FRB.LTC.13-NPT1/2	3/8"	NPT1/2	32	34.5	11.5	10.5
FRB.LTC.16-NPT1/2	1/2"	NPT1/2	32.5	34.5	12	13.8
FRB.LTC.20-NPT3/4	3/4"	NPT3/4	34	41	12.5	18
FRB.LTC.25-NPT1	1"	NPT1/2	42.5	47	15	24
FRB.LTC.32-NPT1-1/4	1-1/4"	NPT1-1/4	49	59	17.5	32.5
FRB.LTC.38-NPT1-1/2	1-1/2"	NPT1-1/2	49	65.5	17.5	37
FRB.LTC.51-NPT2	2"	NPT2	51	78	17.5	48.5
FRB.LTC.64-NPT2-1/2	2-1/2"	NPT2-1/2	74	97	25	59.5
FRB.LTC.75-NPT3	3"	NPT3	81	115	25	74
FRB.LTC.100-NPT4	4"	NPT4	89	139	29	97
