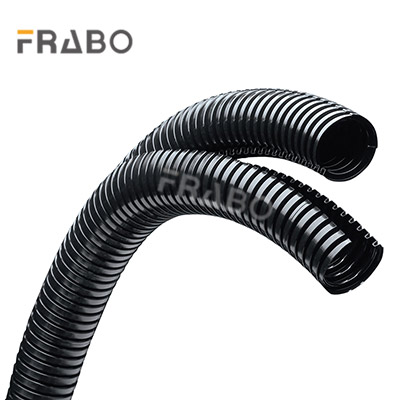

Divisible Flexible Conduit

Material: PA6 Polyamide
Color: black, gray
Working temperature: -50° C ~135 ° C short time 150 ° C
Product features :
1 Standard type: FR grade UL94-HB; Flame retardant type: FR grade UL94-V0
2,Certification: ROHS , CE , track DIN5510 Flame retardant smoke certification, ASTMD4329 UV resistance test, -50° C low temperature test, low smoke & halogen free
3 Easy disassembly during maintenance , convenient installation & well protection for cable wire
4, UV resistance, anti-aging, fire resistance, good flexibility, anti-distortion, strong mechanical strength, particular heavy load， alkali / weak acid resistance, lubricating oil, coolant, etc., shiny surface, friction resistance.
Application: For power/metallurgy/cement plant overhaul of the power equipment cable wire , military aviation equipment ,machinery manufacturing industry etc.

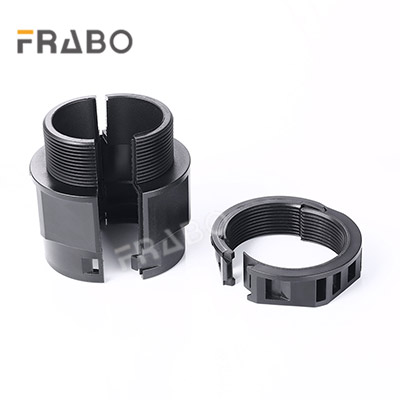

Opening Male Thread Connector

Material: PA66
Color: Black, other colour customizable
Working temperature: -40° C ~110 ° C short time 130 ° C
Product features :
1.Flame retardant grade: UL94-HB
2.Certification: ROHS, ASTMD4329 UV resistance test, -40° C low temperature test;
3.Connect with split Double-layer conduit & motor interface or equipment cabinet ,Easy disassembly & convenient installation during maintenance , well protection for cable wire;
4.UV resistance, anti-aging, fire resistance, strong mechanical strength, withstand relatively heavy load,alkali / weak acid resistance, lubricating oil, coolant, etc.
Application: For power/metallurgy/cement plant overhaul of the power equipment cable wire , military aviation equipment ,machinery manufacturing industry etc..

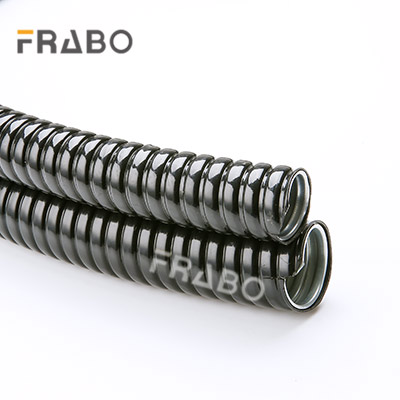

Corrugated PVC Coated Metal Conduit

Material: inner with hot-dipped galvanized steel or stainless steel (copper,aluminum customizable) ;outer PVC.
Color: black, gray,other colors can be customized.
Product performance :
1. high waterproof & dustproof ;
2. Strong tensile & compression resistance;
3. strong anti-aging , corrosion , weather resistance;
4. Good cable protection capability;
5. UL94V0 grade flame retardant;
Comply with CE,ROHS 2.0 Environmental protection ,flame retardant grade certification, etc.
Working temperature :-30℃~80℃(more high or low temperature type material customizable)
Application: railway, power, aerospace , telecommunication system, mechanical equipment installation, lighting system,Electrical insulation protection system, etc.

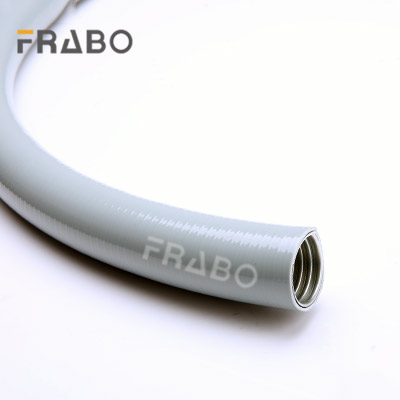

Liquid tight flexible conduit（interlock）

Material: inner with hot-dipped galvanized steel or stainless steel
(other materials customizable) ;outer PVC.
Color: black, gray,other colors can be customized.
Product performance :
1. high waterproof & dustproof ;
2. Strong tensile & compression resistance,superior than GB type;
3. Strong anti-aging , corrosion , weather resistance;
4. Good cable protection capability;
5. Flame retardant grade UL94V0 ;
Comply with CE,ROHS 2.0 Environmental protection ,flame retardant grade certification, etc.
Working temperature :-30℃~80℃(more high or low temperature type material customizable)
Application: Railway, power, aerospace , telecommunication system, mechanical equipment installation, lighting system,Electrical insulation protection system, etc.

PRODUCTS TAGS

Stainless

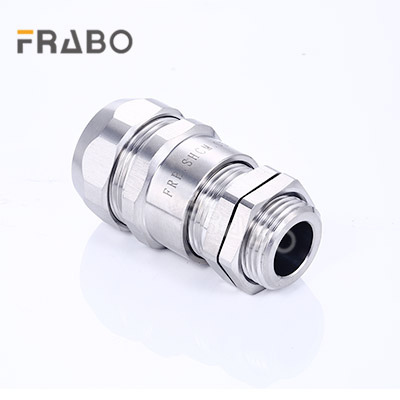

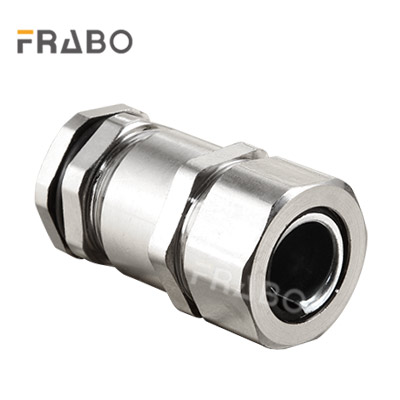

Double Locked Metal Conduit Connector

Material: nickel-plated brass/304 stainless steel
Structure: lock nut,washer,main body1,claw,seal,main body2,ferrule,clamp ring, sealing nut
Product performance :
1. high waterproof and dustproof ;
2. Tensile strength,compact structure for precision connection ;
3. Oil, salt resistance, rust & corrosion resistance;
4. Optional grounding ;
5. Good corrosion resistance.
Application: connecting with flexible conduit, mainly used for installation & maintenance of power equipment, railway ,marine vessel, petrochemical industry, metallurgy,Elevator, lighting, telecommunication, textile & dyeing and other mechanical equipment wire and electrical system protection
[Non-standard thread customizable ,solution for a variety of thread or hole size]

Main Parameter :

Item NO. :
FRB.MBG
Brand:
FRABO
MOQ :
1 Bag
Origins :
China
Port :
Shanghai/Ningbo
Lead Time :
1-3 working days after receipt of payment

Get Price

Products Details

Double Locked Metal Conduit Connector

Spec.	Conduit size	Thread	Card line range	Thread length	Thread diameter	Pcs.
Spec.				mm	mm
FRB.MBG.8-M12	8	M12*1.5	3-6.5	8	12	50
FRB.MBG.10-M12	10	M12*1.5	3-6.5	8	12	50
FRB.MBG.10-M16	10	M16*1.5	4-8	8	16	50
FRB.MBG.10-M18	10	M18*1.5	5-10	8	18	50
FRB.MBG.13-M16	13	M16*1.5	4-8	8	16	50
FRB.MBG.13-M18	13	M18*1.5	5-10	8	18	50
FRB.MBG.13-M20	13	M20*1.5	6-12	8	20	50
FRB.MBG.16-M20	16	M20*1.5	6-12	8	20	50
FRB.MBG.16-M24	16	M24*1.5	10-14	10	24	50
FRB.MBG.20-M20	20	M20*1.5	6-12	11	24	50
FRB.MBG.20-M24	20	M24*1.5	10-14	11	24	50
FRB.MBG.20-M25	20	M25*1.5	11-16	11	25	50
FRB.MBG.20-M27	20	M27*2.0	13-18	11	27	50
FRB.MBG.25-M25	25	M25*1.5	11-16	11	25	50
FRB.MBG.25-M30	25	M30*2.0	14-20	11	30	50
FRB.MBG.25-M32	25	M32*1.5	15-22	11	32	50
FRB.MBG.25-M36	25	M36*2.0	18-25	11	36	50
FRB.MBG.32-M32	32	M32*1.5	15-22	11	32	50
FRB.MBG.32-M36	32	M36*2.0	18-25	11	36	50
FRB.MBG.32-M40	32	M40*1.5	22-28	12	40	25
FRB.MBG.38-M40	38	M40*1.5	22-28	12	40	25
FRB.MBG.38-M42	38	M42*2.0	24-30	13	42	25
FRB.MBG.38-M48	38	M48*2.0	25-32	13	48	25
FRB.MBG.38-M50	38	M50*1.5	28-36	13	50	25
FRB.MBG.38-M54	38	M54*2.0	32-38	14	54	25
FRB.MBG.51-M50	51	M50*1.5	28-36	14	50	25
FRB.MBG.51-M54	51	M54*2.0	32-38	14	54	25
FRB.MBG.51-M60	51	M60*2.0	37-44	14	60	25
FRB.MBG.51-M63	51	M63*1.5	37-44	14	63	25
FRB.MBG.64-M63	64	M63*1.5	37-44	14	63	20
FRB.MBG.64-M72	64	M72*2.0	42-52	15	72	20
FRB.MBG.64-M76	64	M76*2.0	44-55	17	76	20
FRB.MBG.64-M95	64	M95*2.0	52-70	17	95	20
