Divisible Flexible Conduit

Material: PA6 Polyamide
Color: black, gray
Working temperature: -50° C ~135 ° C short time 150 ° C
Product features :
1 Standard type: FR grade UL94-HB; Flame retardant type: FR grade UL94-V0
2,Certification: ROHS , CE , track DIN5510 Flame retardant smoke certification, ASTMD4329 UV resistance test, -50° C low temperature test, low smoke & halogen free
3 Easy disassembly during maintenance , convenient installation & well protection for cable wire
4, UV resistance, anti-aging, fire resistance, good flexibility, anti-distortion, strong mechanical strength, particular heavy load， alkali / weak acid resistance, lubricating oil, coolant, etc., shiny surface, friction resistance.
Application: For power/metallurgy/cement plant overhaul of the power equipment cable wire , military aviation equipment ,machinery manufacturing industry etc.
Opening Male Thread Connector

Material: PA66
Color: Black, other colour customizable
Working temperature: -40° C ~110 ° C short time 130 ° C
Product features :
1.Flame retardant grade: UL94-HB
2.Certification: ROHS, ASTMD4329 UV resistance test, -40° C low temperature test;
3.Connect with split Double-layer conduit & motor interface or equipment cabinet ,Easy disassembly & convenient installation during maintenance , well protection for cable wire;
4.UV resistance, anti-aging, fire resistance, strong mechanical strength, withstand relatively heavy load,alkali / weak acid resistance, lubricating oil, coolant, etc.
Application: For power/metallurgy/cement plant overhaul of the power equipment cable wire , military aviation equipment ,machinery manufacturing industry etc..
Corrugated PVC Coated Metal Conduit

Material: inner with hot-dipped galvanized steel or stainless steel (copper,aluminum customizable) ;outer PVC.
Color: black, gray,other colors can be customized.
Product performance :
1. high waterproof & dustproof ;
2. Strong tensile & compression resistance;
3. strong anti-aging , corrosion , weather resistance;
4. Good cable protection capability;
5. UL94V0 grade flame retardant;
Comply with CE,ROHS 2.0 Environmental protection ,flame retardant grade certification, etc.
Working temperature :-30℃~80℃(more high or low temperature type material customizable)
Application: railway, power, aerospace , telecommunication system, mechanical equipment installation, lighting system,Electrical insulation protection system, etc.
Liquid tight flexible conduit（interlock）

Material: inner with hot-dipped galvanized steel or stainless steel
(other materials customizable) ;outer PVC.
Color: black, gray,other colors can be customized.
Product performance :
1. high waterproof & dustproof ;
2. Strong tensile & compression resistance,superior than GB type;
3. Strong anti-aging , corrosion , weather resistance;
4. Good cable protection capability;
5. Flame retardant grade UL94V0 ;
Comply with CE,ROHS 2.0 Environmental protection ,flame retardant grade certification, etc.
Working temperature :-30℃~80℃(more high or low temperature type material customizable)
Application: Railway, power, aerospace , telecommunication system, mechanical equipment installation, lighting system,Electrical insulation protection system, etc.

PRODUCTS TAGS

Stainless

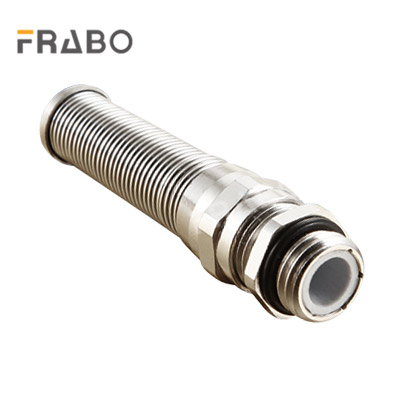

FRB-BDM-E explosion-proof cable sealing clamp joint (single seal, armor, filler)

Product features
Material: Made of brass or stainless pot, with a nickel plated surface on the brass;
Sealing element: silicone sealant (-60C+80 "C)
Explosion proof sign: Ex d IC Gb/Ex e Gb IP66
Flame retardant grade: VO (UL94)
The electrical end is sealed with packing;
Featuring fast installation, safety and reliability, and good protective performance;
Suitable for clamping and fixing various types of misaligned electrical terminals.
Environmental occasions: Zone 1 and Zone 2 A-IC explosive gas environments, widely used in petrochemical, warehouse, food, pharmaceutical, military and other electrical appliances for the introduction of electric combustion.

Main Parameter :

Item NO. :
FRB.BDM-E
Brand:
FRABO
MOQ :
1 PCS
Origins :
China
Port :
Shanghai/Ningbo
Lead Time :
1-3 working days after receipt of payment

Get Price

Products Details

FRB-BDM-E explosion-proof cable sealing clamp joint (single seal, armor, filler)

Spec.	Thread			Cable outlet	Cable outer diameter range	Max length	Thread length
-	M	NPT	G	mm	mm	mm	mm
FRB.BDM-E.01	M16*1.5	-	-	8	7-15	68	15
FRB.BDM-E.02	M20*1.5	NPT1/2	G1/2	10	7-15	68	15
FRB.BDM-E.03	M25*1.5	NPT3/4	G3/4	15	11-20	68	15
FRB.BDM-E.04	M32*1.5	NPT1	G1	20	14-25	73	17
FRB.BDM-E.05	M40*1.5	NPT1 1/4	G1 1/4	27	19-33	80	19
FRB.BDM-E.06	M50*1.5	NPT1 1/2	G1 1/2	31	24-41	85	19
FRB.BDM-E.07	M63*1.5	NPT2	G2	41	30-50	93	20
FRB.BDM-E.08	M75*1.5	NPT2 1/2	G2 1/2	55	38-64	100	21
FRB.BDM-E.09	M85*1.5	NPT3	G3	65	47-74	103	24
FRB.BDM-E.10	M90*1.5	NPT3	G3	65	47-74	103	24
FRB.BDM-E.11	M100*1.5	NPT4	G4	80	57-90	112	26
FRB.BDM-E.12	M110*1.5	NPT4	G4	90	62-103	112	26

Prev：no more Next：FRB-BDM-C explosion-proof cable sealing clamp joint (single seal, filler)
