Divisible Flexible Conduit

Material: PA6 Polyamide
Color: black, gray
Working temperature: -50° C ~135 ° C short time 150 ° C
Product features :
1 Standard type: FR grade UL94-HB; Flame retardant type: FR grade UL94-V0
2,Certification: ROHS , CE , track DIN5510 Flame retardant smoke certification, ASTMD4329 UV resistance test, -50° C low temperature test, low smoke & halogen free
3 Easy disassembly during maintenance , convenient installation & well protection for cable wire
4, UV resistance, anti-aging, fire resistance, good flexibility, anti-distortion, strong mechanical strength, particular heavy load， alkali / weak acid resistance, lubricating oil, coolant, etc., shiny surface, friction resistance.
Application: For power/metallurgy/cement plant overhaul of the power equipment cable wire , military aviation equipment ,machinery manufacturing industry etc.
Opening Male Thread Connector

Material: PA66
Color: Black, other colour customizable
Working temperature: -40° C ~110 ° C short time 130 ° C
Product features :
1.Flame retardant grade: UL94-HB
2.Certification: ROHS, ASTMD4329 UV resistance test, -40° C low temperature test;
3.Connect with split Double-layer conduit & motor interface or equipment cabinet ,Easy disassembly & convenient installation during maintenance , well protection for cable wire;
4.UV resistance, anti-aging, fire resistance, strong mechanical strength, withstand relatively heavy load,alkali / weak acid resistance, lubricating oil, coolant, etc.
Application: For power/metallurgy/cement plant overhaul of the power equipment cable wire , military aviation equipment ,machinery manufacturing industry etc..
Corrugated PVC Coated Metal Conduit

Material: inner with hot-dipped galvanized steel or stainless steel (copper,aluminum customizable) ;outer PVC.
Color: black, gray,other colors can be customized.
Product performance :
1. high waterproof & dustproof ;
2. Strong tensile & compression resistance;
3. strong anti-aging , corrosion , weather resistance;
4. Good cable protection capability;
5. UL94V0 grade flame retardant;
Comply with CE,ROHS 2.0 Environmental protection ,flame retardant grade certification, etc.
Working temperature :-30℃~80℃(more high or low temperature type material customizable)
Application: railway, power, aerospace , telecommunication system, mechanical equipment installation, lighting system,Electrical insulation protection system, etc.
Liquid tight flexible conduit（interlock）

Material: inner with hot-dipped galvanized steel or stainless steel
(other materials customizable) ;outer PVC.
Color: black, gray,other colors can be customized.
Product performance :
1. high waterproof & dustproof ;
2. Strong tensile & compression resistance,superior than GB type;
3. Strong anti-aging , corrosion , weather resistance;
4. Good cable protection capability;
5. Flame retardant grade UL94V0 ;
Comply with CE,ROHS 2.0 Environmental protection ,flame retardant grade certification, etc.
Working temperature :-30℃~80℃(more high or low temperature type material customizable)
Application: Railway, power, aerospace , telecommunication system, mechanical equipment installation, lighting system,Electrical insulation protection system, etc.

PRODUCTS TAGS

Stainless

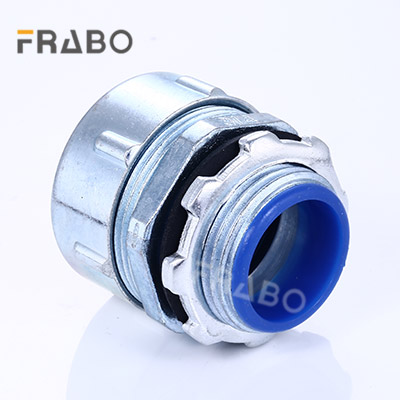

Male Thread Metal Conduit Connector

Material: thickened zinc alloy chrome plating
Structure: lock nut,washer,main body,ferrule,clamp ring, sealing nut
Product performance :
1. high waterproof and dustproof ;
2. Compact structure,well connection ;
3. Good cable protection capability;
4. Optional grounding ;
5. Good corrosion resistance.
Application: connecting with flexible conduit, mainly used for installation & maintenance of power equipment, railway ,marine vessel, petrochemical industry, metallurgy,Elevator, lighting, telecommunication, textile & dyeing and other mechanical equipment wire and electrical system protection
[Non-standard thread customizable ,solution for a variety of thread or hole size]

Main Parameter :

Item NO. :
FRB.DPJM
Brand:
FRABO
MOQ :
1 Bag
Origins :
China
Port :
Shanghai/Ningbo
Lead Time :
1-3 working days after receipt of payment

Get Price

Products Details

Male Thread Metal Conduit Connector

Spec.	Conduit size		Thread	Thread length	Thread diameter	Pcs.
M	ID	G		mm	mm	pcs/Bag
FRB.DPJM.6-M14	6	G3/16"	M14*1.5	8	14	50
FRB.DPJM.8-M16	8	G1/4"	M16*1.5	8	16	50
FRB.DPJM.10-M16	10	G5/16"	M16*1.5	8	16	50
FRB.DPJM.13-M20	13	G3/8"	M20*1.5	8	20	50
FRB.DPJM.16-M20	16	G1/2"	M20*1.5	8	20	50
FRB.DPJM.20-M25	20	G3/4"	M25*1.5	11	25	50
FRB.DPJM.25-M32	25	G1"	M32*1.5	12	32	50
FRB.DPJM.32-M40	32	G1.1/4"	M40*1.5	15	40	25
FRB.DPJM.38-M50	38	G1.1/2"	M50*1.5	16	50	25
FRB.DPJM.51-M60	51	G2"	M60*2.0	18	60	10
FRB.DPJM.64-M76	64	G2.1/2"	M76*2.0	22	76	10
FRB.DPJM.75-M88	75	G3"	M88*2.0	22	88	2
FRB.DPJM.100-M114	100	G4"	M114*2.0	24	114	2
FRB.DPJM.125-M140	125	G5"	M140*2.0	29	140	2
FRB.DPJM.150-M164	150	G6"	M164*2.0	29	164	2
G	Conduit size		Thread	Thread length	Thread diameter	Pcs.
FRB.DPJM.6-G1/4	6	G3/16"	G1/4"	8	13.2	50
FRB.DPJM.8-G3/8	8	G1/4"	G3/8"	8	16.5	50
FRB.DPJM.10-G3/8	10	G5/16"	G3/8"	8	16.5	50
FRB.DPJM.13-G3/8	13	G3/8"	G3/8"	8	16.5	50
FRB.DPJM.16-G1/2	16	G1/2"	G1/2"	11	21.3	50
FRB.DPJM.20-G3/4	20	G3/4"	G3/4"	14	26.6	50
FRB.DPJM.25-G1	25	G1"	G1"	15	33.4	50
FRB.DPJM.32-G1 1/4	32	G1.1/4"	G1-1/4"	15	42.1	25
FRB.DPJM.38-G1 1/2	38	G1.1/2"	G1-1/2"	16	47.8	25
FRB.DPJM.51-G2	51	G2"	G2"	18	59.6	10
FRB.DPJM.64-G2 1/2	64	G2.1/2"	G2-1/2"	22	75.1	10
FRB.DPJM.75-G3	75	G3"	G3"	22	87.8	2
FRB.DPJM.100-G4	100	G4"	G4"	24	113	2
FRB.DPJM.125-G5	125	G5"	G5"	29	138.4	2
FRB.DPJM.150-G6	150	G6"	G6"	29	163.8	2
PG	Conduit size		Thread	Thread length	Thread diameter	Pcs.
FRB.DPJM.6-PG7	6	G3/16"	PG7	8	12.5	50
FRB.DPJM.8-PG9	8	G1/4"	PG9	8	15.2	50
FRB.DPJM.10-PG9	10	G5/16"	PG9	8	15.2	50
FRB.DPJM.13-PG11	13	G3/8"	PG11	8	18.6	50
FRB.DPJM.16-PG13.5	16	G1/2"	PG13.5	11	20.4	50
FRB.DPJM.20-PG21	20	G3/4"	PG21	14	28.3	50
FRB.DPJM.25-PG29	25	G1"	PG29	15	37	50
FRB.DPJM.32-PG29	32	G1.1/4"	PG29	15	37	25
FRB.DPJM.38-PG36	38	G1.1/2"	PG36	16	47	25
FRB.DPJM.51-PG48	51	G2"	PG48	18	59.3	10
NPT	Conduit size		Thread	Thread length	Thread diameter	Pcs.
FRB.DPJM.6-NPT1/4	6	G3/16"	NPT1/4	8	13.2	50
FRB.DPJM.8-NPT3/8	8	G1/4"	NPT3/8	8	16.5	50
FRB.DPJM.10-NPT3/8	10	G5/16"	NPT3/8	8	16.5	50
FRB.DPJM.13-NPT3/8	13	G3/8"	NPT3/8	8	16.5	50
FRB.DPJM.16-NPT1/2	16	G1/2"	NPT1/2	11	21.3	50
FRB.DPJM.20-NPT3/4	20	G3/4"	NPT3/4	14	26.6	50
FRB.DPJM.25-NPT1	25	G1"	NPT1	15	33.4	50
FRB.DPJM.32-NPT1 1/4	32	G1.1/4"	NPT1-1/4	15	42.1	25
FRB.DPJM.38-NPT1 1/2	38	G1.1/2"	NPT1-1/2	16	47.8	25
FRB.DPJM.51-NPT2	51	G2"	NPT2	18	59.6	10
FRB.DPJM.64-NPT2 1/2	64	G2.1/2"	NPT2-1/2	22	75.1	10
FRB.DPJM.75-NPT3	75	G3"	NPT3	22	87.8	2
FRB.DPJM.100-NPT4	100	G4"	NPT4	24	113	2
FRB.DPJM.125-NPT5	125	G5"	NPT5	29	138.4	2
FRB.DPJM.150-NPT6	150	G6"	NPT6	29	163.8	2
