Divisible Flexible Conduit

Material: PA6 Polyamide
Color: black, gray
Working temperature: -50° C ~135 ° C short time 150 ° C
Product features :
1 Standard type: FR grade UL94-HB; Flame retardant type: FR grade UL94-V0
2,Certification: ROHS , CE , track DIN5510 Flame retardant smoke certification, ASTMD4329 UV resistance test, -50° C low temperature test, low smoke & halogen free
3 Easy disassembly during maintenance , convenient installation & well protection for cable wire
4, UV resistance, anti-aging, fire resistance, good flexibility, anti-distortion, strong mechanical strength, particular heavy load， alkali / weak acid resistance, lubricating oil, coolant, etc., shiny surface, friction resistance.
Application: For power/metallurgy/cement plant overhaul of the power equipment cable wire , military aviation equipment ,machinery manufacturing industry etc.
Opening Male Thread Connector

Material: PA66
Color: Black, other colour customizable
Working temperature: -40° C ~110 ° C short time 130 ° C
Product features :
1.Flame retardant grade: UL94-HB
2.Certification: ROHS, ASTMD4329 UV resistance test, -40° C low temperature test;
3.Connect with split Double-layer conduit & motor interface or equipment cabinet ,Easy disassembly & convenient installation during maintenance , well protection for cable wire;
4.UV resistance, anti-aging, fire resistance, strong mechanical strength, withstand relatively heavy load,alkali / weak acid resistance, lubricating oil, coolant, etc.
Application: For power/metallurgy/cement plant overhaul of the power equipment cable wire , military aviation equipment ,machinery manufacturing industry etc..
Corrugated PVC Coated Metal Conduit

Material: inner with hot-dipped galvanized steel or stainless steel (copper,aluminum customizable) ;outer PVC.
Color: black, gray,other colors can be customized.
Product performance :
1. high waterproof & dustproof ;
2. Strong tensile & compression resistance;
3. strong anti-aging , corrosion , weather resistance;
4. Good cable protection capability;
5. UL94V0 grade flame retardant;
Comply with CE,ROHS 2.0 Environmental protection ,flame retardant grade certification, etc.
Working temperature :-30℃~80℃(more high or low temperature type material customizable)
Application: railway, power, aerospace , telecommunication system, mechanical equipment installation, lighting system,Electrical insulation protection system, etc.
Liquid tight flexible conduit（interlock）

Material: inner with hot-dipped galvanized steel or stainless steel
(other materials customizable) ;outer PVC.
Color: black, gray,other colors can be customized.
Product performance :
1. high waterproof & dustproof ;
2. Strong tensile & compression resistance,superior than GB type;
3. Strong anti-aging , corrosion , weather resistance;
4. Good cable protection capability;
5. Flame retardant grade UL94V0 ;
Comply with CE,ROHS 2.0 Environmental protection ,flame retardant grade certification, etc.
Working temperature :-30℃~80℃(more high or low temperature type material customizable)
Application: Railway, power, aerospace , telecommunication system, mechanical equipment installation, lighting system,Electrical insulation protection system, etc.

PRODUCTS TAGS

Stainless

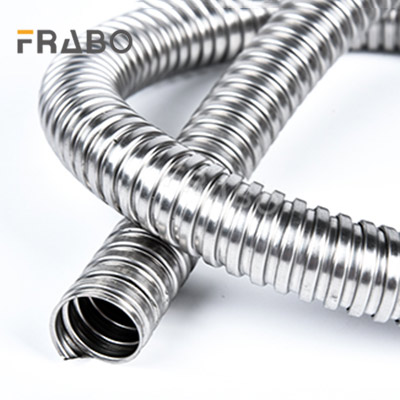

304 Stainless Steel flexible conduit

Material: 304 Stainless Steel
Color: metal color
Product performance :
1. General waterproof & dustproof ;
2. Good tensile & compression resistance；
3. Anti-aging , corrosion , weather resistance;
4. Well cable protection capability;
Application: railway, power, aerospace , telecommunication system, mechanical equipment installation, lighting system,Electrical insulation protection system, etc.

Main Parameter :

Item NO. :
FRB.JS-S
Brand:
FRABO
MOQ :
1 Roll
Origins :
China
Port :
Shanghai/Ningbo
Lead Time :
1-3 working days after receipt of payment

Get Price

Products Details

304 Stainless Steel flexible conduit

Chinese standards

Spec.	size			bending	Min Axial Pull	Pcs.
	ID(mm)	G	OD(mm)	mm	N	M/Roll
	ID(mm)	G	OD(mm)	mm	N	M/Roll
FRB.JS-S.6	6±0.25	3/16"	8.2±0.3	40	240	200
FRB.JS-S.8	8±0.3	1/4"	11±0.3	45	360	100
FRB.JS-S.10	10±0.3	5/16"	13.5±0.3	55	600	100
FRB.JS-S.13	13±0.35	3/8"	15.5±0.35	65	780	100
FRB.JS-S.16	16±0.4	1/2"	20±0.4	85	960	100
FRB.JS-S.20	20±0.4	3/4"	24.3±0.4	100	1200	50
FRB.JS-S.25	25±0.45	1"	30.3±0.45	115	1500	50
FRB.JS-S.32	32±0.5	1.1/4"	38±0.5	140	1920	25
FRB.JS-S.38	38±0.6	1.1/2"	45±0.6	160	2280	25
FRB.JS-S.51	51±0.8	2"	58±0.8	190	3060	20
FRB.JS-S.64	64±2	2 1/2"	72.5±2	280	3840	10
FRB.JS-S.75	75±2	3"	83.5±2	320	4500	10
FRB.JS-S.100	100±3	4"	108.5±3	380	6000	10
FRB.JS-S.125	125±4	3"	133±4	/	/	5
FRB.JS-S.150	150±5	4"	157±5	/	/	5

General standards

Nominal Conduit Size	Nominal Conduit Size	Spec.	ID (mm)	OD (mm)	Bending Radius (mm)	Package/Roll(m)
10	1/4	FRB.JS1-S.10	8	11	30	25
12	5/16	FRB.JS1-S.12	10.3	14	35	25
16	3/8	FRB.JS1-S.16	12.6	16.6	40	25
20	1/2	FRB.JS1-S.20	16.1	20.9	40	25
25	3/4	FRB.JS1-S.25	21.1	25.9	50	25
32	1	FRB.JS1-S.32	26.8	32.3	55	10
40	1-1/4	FRB.JS1-S.40	35.4	41.8	70	10
50	1-1/2	FRB.JS1-S.50	40.3	46.5	90	10
63	2	FRB.JS1-S.63	51.6	58.6	95	5
