Divisible Flexible Conduit

Material: PA6 Polyamide
Color: black, gray
Working temperature: -50° C ~135 ° C short time 150 ° C
Product features :
1 Standard type: FR grade UL94-HB; Flame retardant type: FR grade UL94-V0
2,Certification: ROHS , CE , track DIN5510 Flame retardant smoke certification, ASTMD4329 UV resistance test, -50° C low temperature test, low smoke & halogen free
3 Easy disassembly during maintenance , convenient installation & well protection for cable wire
4, UV resistance, anti-aging, fire resistance, good flexibility, anti-distortion, strong mechanical strength, particular heavy load， alkali / weak acid resistance, lubricating oil, coolant, etc., shiny surface, friction resistance.
Application: For power/metallurgy/cement plant overhaul of the power equipment cable wire , military aviation equipment ,machinery manufacturing industry etc.
Opening Male Thread Connector

Material: PA66
Color: Black, other colour customizable
Working temperature: -40° C ~110 ° C short time 130 ° C
Product features :
1.Flame retardant grade: UL94-HB
2.Certification: ROHS, ASTMD4329 UV resistance test, -40° C low temperature test;
3.Connect with split Double-layer conduit & motor interface or equipment cabinet ,Easy disassembly & convenient installation during maintenance , well protection for cable wire;
4.UV resistance, anti-aging, fire resistance, strong mechanical strength, withstand relatively heavy load,alkali / weak acid resistance, lubricating oil, coolant, etc.
Application: For power/metallurgy/cement plant overhaul of the power equipment cable wire , military aviation equipment ,machinery manufacturing industry etc..
Corrugated PVC Coated Metal Conduit

Material: inner with hot-dipped galvanized steel or stainless steel (copper,aluminum customizable) ;outer PVC.
Color: black, gray,other colors can be customized.
Product performance :
1. high waterproof & dustproof ;
2. Strong tensile & compression resistance;
3. strong anti-aging , corrosion , weather resistance;
4. Good cable protection capability;
5. UL94V0 grade flame retardant;
Comply with CE,ROHS 2.0 Environmental protection ,flame retardant grade certification, etc.
Working temperature :-30℃~80℃(more high or low temperature type material customizable)
Application: railway, power, aerospace , telecommunication system, mechanical equipment installation, lighting system,Electrical insulation protection system, etc.
Liquid tight flexible conduit（interlock）

Material: inner with hot-dipped galvanized steel or stainless steel
(other materials customizable) ;outer PVC.
Color: black, gray,other colors can be customized.
Product performance :
1. high waterproof & dustproof ;
2. Strong tensile & compression resistance,superior than GB type;
3. Strong anti-aging , corrosion , weather resistance;
4. Good cable protection capability;
5. Flame retardant grade UL94V0 ;
Comply with CE,ROHS 2.0 Environmental protection ,flame retardant grade certification, etc.
Working temperature :-30℃~80℃(more high or low temperature type material customizable)
Application: Railway, power, aerospace , telecommunication system, mechanical equipment installation, lighting system,Electrical insulation protection system, etc.

PRODUCTS TAGS

Stainless

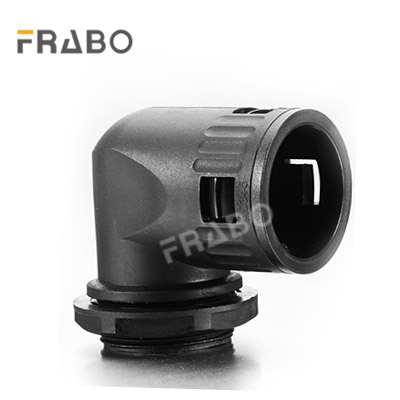

Quick Elbow Connector For Flexible Conduit

Material: Nylon PA
Color: Black, other colour customizable
Working temperature: -40° C ~100 ° C
Product features :Internal lock design, easily insert or remove without using tools
Application: Connecting with plastic flexible conduit, mainly used for installation & maintenance of power equipment, railway ,marine vessel, petrochemical industry, metallurgy,Elevator, lighting, telecommunication, textile & dyeing and other mechanical equipment wire and electrical system protection

Main Parameter :

Item NO. :
FRB.QGW
Brand:
FRABO
MOQ :
1 Bag
Origins :
China
Port :
Shanghai/Ningbo
Lead Time :
1-3 working days after receipt of payment

Get Price

Products Details

Quick Elbow Connector For Flexible Conduit

Spec.	OD.xID.	Standard Thread	Thread Diameter	Thread Length	Std Pk
FRB.QGW.AD10-M10	10*6.5	M10x1.5	10	10	50
FRB.QGW.AD10-M12		M12x1.5	12	10	50
FRB.QGW.AD10-M16		M16x1.5	16	10	50
FRB.QGW.AD13-M12	13*10.0	M12x1.5	12	10	50
FRB.QGW.AD13-M16		M16x1.5	16	10	50
FRB.QGW.AD13-M18		M18x1.5	18	10	50
FRB.QGW.AD13-M20		M20x1.5	20	10	50
FRB.QGW.AD15.8-M16	15.8*12.0	M16x1.5	16	10	50
FRB.QGW.AD15.8-M18		M18x1.5	18	12.5	50
FRB.QGW.AD15.8-M20		M20x1.5	20	12.5	50
FRB.QGW.AD18.5-M20	18.5*14.3	M20x1.5	20	12.5	50
FRB.QGW.AD18.5-M22	18.5*14.3	M22x1.5	22	12.5	50
FRB.QGW.AD21.2-M20	21.2*17.0	M20x1.5	20	13	50
FRB.QGW.AD21.2-M22		M22x1.5	22	13	50
FRB.QGW.AD21.2-M24		M24x1.5	24	13	50
FRB.QGW.AD21.2-M25		M25x1.5	25	13	50
FRB.QGW.AD21.2-M32		M32x1.5	32	13	50
FRB.QGW.AD25.5-M25	25.5*21.0	M25x1.5	25	13	50
FRB.QGW.AD28.5-M25	28.5*23.0	M25x1.5	25	13	20
FRB.QGW.AD28.5-M27		M27x1.5	27	13	20
FRB.QGW.AD28.5-M30		M30x1.5	30	13	20
FRB.QGW.AD28.5-M30B		M30x2.0	30	13	20
FRB.QGW.AD28.5-M32		M32x1.5	32	13	20
FRB.QGW.AD34.5-M32	34.5*29.0	M32x1.5	32	14	10
FRB.QGW.AD34.5-M36		M36x1.5	36	14	10
FRB.QGW.AD34.5-M40		M40x1.5	40	14	10
FRB.QGW.AD42.5-M40	42.5*36.0	M40x1.5	40	15	8
FRB.QGW.AD42.5-M42		M42x1.5	42	15	8
FRB.QGW.AD42.5-M48		M48x1.5	48	15	8
FRB.QGW.AD54.5-M50	54.5*48.0	M50x1.5	50	16	5
FRB.QGW.AD54.5-M63	54.5*48.0	M63x1.5	63	16	5
Spec.	OD.xID.	Standard Thread	Thread Diameter	Thread Length	Std Pk
FRB.QGW.AD10-PG7	10*6.5	PG7	12.4	10	50
FRB.QGW.AD13-PG9	13*10.0	PG9	15.2	10	50
FRB.QGW.AD15.8-PG11	15.8*12.0	PG11	18.4	12.5	50
FRB.QGW.AD18.5-PG13.5	18.5*14.3	PG13.5	20.4	12.5	50
FRB.QGW.AD21.2-PG16	21.2*17.0	PG16	22.5	13	50
FRB.QGW.AD28.5-PG21	28.5*23.0	PG21	28.3	13	20
FRB.QGW.AD34.5-PG29	34.5*29.0	PG29	37	14	10
FRB.QGW.AD42.5-PG36	42.5*36.0	PG36	47	15	8
FRB.QGW.AD54.5-PG42	54.5*48.0	PG42	54	16	5
FRB.QGW.AD54.5-PG48	54.5*48.0	PG48	59.3	16	5
Spec.	OD.xID.	Standard Thread	Thread Diameter	Thread Length	Std Pk
FRB.QGW.AD10-G1/4	10*6.5	G1/4	13.1	10	50
FRB.QGW.AD13-G3/8	13*10.0	G3/8	16.6	10	50
FRB.QGW.AD15.8-G3/8	15.8*12.0	G3/8	16.6	12.5	50
FRB.QGW.AD15.8-G1/2	15.8*12.0	G1/2	20.9	12.5	50
FRB.QGW.AD18.5-G1/2	18.5*14.3	G1/2	20.9	12.5	50
FRB.QGW.AD21.2-G1/2	21.2*17.0	G1/2	20.9	13	50
FRB.QGW.AD21.2-G3/4	21.2*17.0	G3/4	26.4	13	50
FRB.QGW.AD25.5-G3/4	25.5*21	G3/4	26.4	13	50
FRB.QGW.AD28.5-G3/4	28.5*23.0	G3/4	26.4	13	20
FRB.QGW.AD34.5-G1	34.5*29.0	G1	33.2	14	10
FRB.QGW.AD42.5-G1.1/4	42.5*36.0	G1 1/4	42	15	8
FRB.QGW.AD42.5-G1.1/2	42.5*36.0	G1 1/2	48	15	8
FRB.QGW.AD54.5-G1.1/2	54.5*48.0	G1 1/2	48	16	5
FRB.QGW.AD54.5-G2	54.5*48.0	G2	60	16	5
